NCERT Solutions for Maths Class 9 Chapter 3 Coordinate Geometry Exercise 3.1 - FREE PDF Download
Vedantu’s NCERT Solutions For Class 9 Maths Chapter 3 Coordinate Geometry Exercise 3.1 are prepared by our subject masters. They provide detailed and straightforward solutions for all the difficulties you may face. It is aimed at making you’re studying a much easier process. These solutions easily cover all the Coordinate Geometry ex 3.1 class 9 in a much more reliable and easy way. Download the free PDF for NCERT Solution for Class 9 Maths 3.1 Exercise to enhance your preparation. Access Class 9 Maths Solution here.
Glance on NCERT Solutions Maths Chapter 3 Exercise 3.1 Class 9 | Vedantu
NCERT Solution for Class 9 Chapter 3 covers topics like Introduction to the Cartesian Plane and Plotting Points on the Cartesian Plane.
Understand the Cartesian plane with two perpendicular axes: the x-axis (horizontal) and the y-axis (vertical). Recognizing the origin, where the two axes intersect, denoted as (0, 0).
Learn to plot points using ordered pairs (x, y). Understanding the concept of coordinates and how to locate points accurately on the graph.
There are 2 questions in Exercise 3.1 Maths Class 9 Chapter 3 Coordinate Geometry which experts at Vedantu fully solve.
Exercise 3.1
1. How will you describe the position of a table lamp on your study table to another person?
Ans:

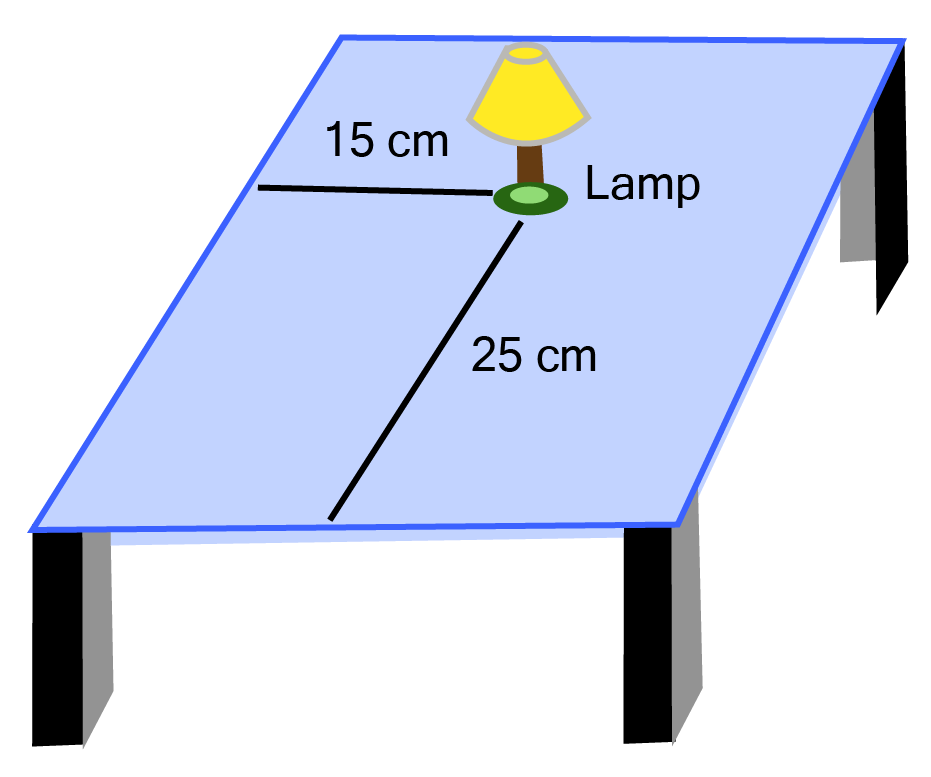

Let us consider the given below figure of a study stable, on which a study lamp is placed.
From the above figure,
Let us consider the lamp on the table as a point
Let us consider the table as a plane.
So we can conclude that the table is rectangular in shape, when observed from the top.
The table consists of a short edge and a long edge.
Let us measure the distance of the lamp from the shorter edge and the longer edge.
Let us assume
Distance of the lamp from the shorter edge is 15 cm
Distance of the lamp from the longer edge is 25 cm.
Therefore, we can conclude that the position of the lamp on the table can be described in two ways depending on the order of the axes as $(15,{\text{ 25)}}$ or $(25,{\text{ 15)}}$.
2. (Street Plan): A city has two main roads which cross each other at the center of the city. These two roads are along the North–South direction and East–West direction. All the other streets of the city run parallel to these roads and are 200 m apart. There are 5 streets in each direction. Using $1{\text{ cm = 200 m}}$, draw a model of the city on your notebook. Represent the roads/streets by single lines. There are many cross- streets in your model. A particular cross street is made by two streets, one running in the North–South direction and another in the East– West direction. Each cross street is referred to in the following manner: If the 2nd street running in the North–South direction and 5th in the East–West direction meet at some crossing, then we will call this cross-street $(2,{\text{ 5)}}$. Using this convention,
Find:
(i) How many cross - streets can be referred to as $(4,{\text{ 3)}}$.
Ans:
Draw two perpendicular lines as the two main roads of the city that cross each other at the center.
Mark it as N–S and E–W.
As per given, take scale as $1{\text{ cm = 200 m}}$.

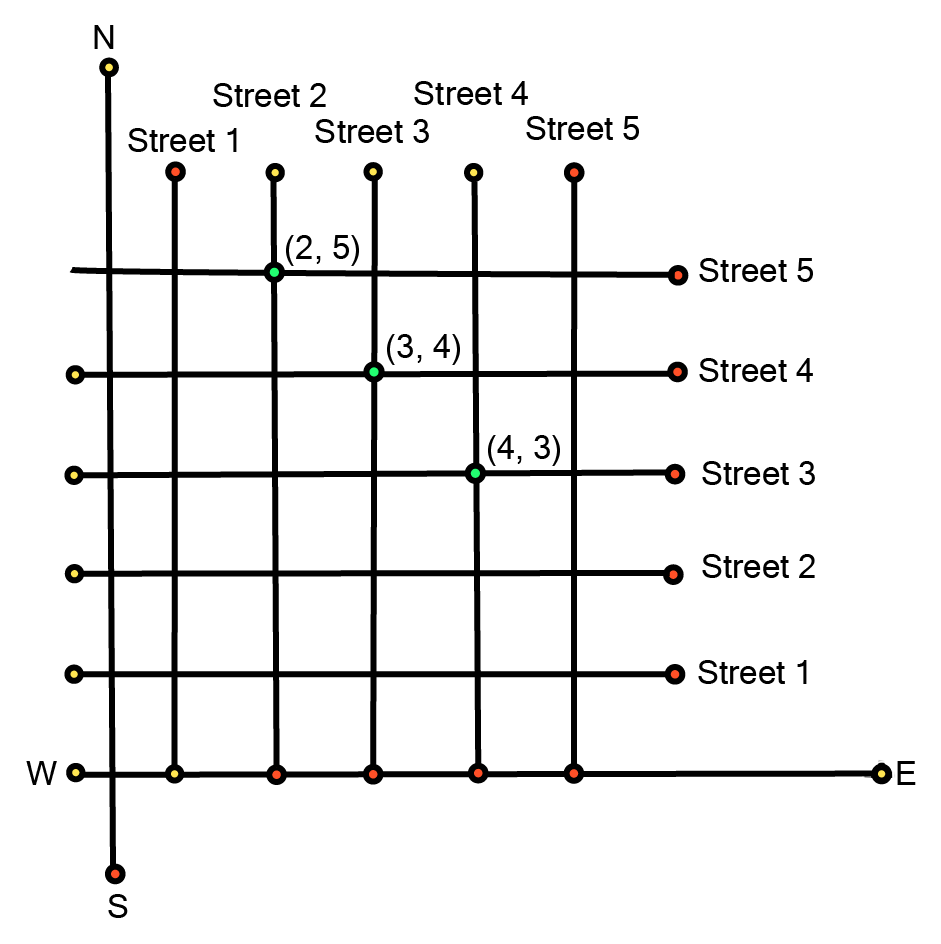

Draw five streets that are parallel to both the main roads, to obtain the figure given below:
Street plan is as given in the above figure:
$\therefore $ There is only one cross street, which can be referred to as $(4,{\text{ 3)}}$.
(ii) How many cross - streets can be referred to as $(3,{\text{ 4)}}$.
Ans:
There is only one cross street, which can be referred to as $(3,{\text{ 4)}}$ .
Conclusion
The "NCERT Solutions for Class 9 Maths Chapter 3: Coordinate Geometry - Exercise 3.1" provided by Vedantu are crucial for understanding fundamental concepts in coordinate geometry. It's important to focus on mastering the Cartesian coordinate system, plotting points, understanding quadrants, and calculating distances between points. Students should practice these exercises thoroughly to build a strong foundation in geometry, which is essential for higher-level mathematical concepts and applications in various fields. Vedantu's solutions offer comprehensive guidance to ensure thorough understanding and proficiency in these topics.
