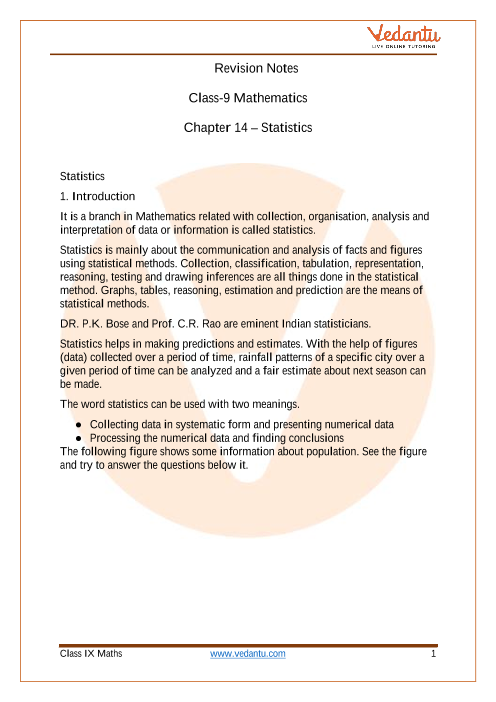

Class 9 Maths Revision Notes for Statistics of Chapter 14

Statistics

1. Introduction

It is a branch in Mathematics related with collection, organisation, analysis and interpretation of data or information is called statistics.

Statistics is mainly about the communication and analysis of facts and figures using statistical methods. Collection, classification, tabulation, representation, reasoning, testing and drawing inferences are all things done in the statistical method. Graphs, tables, reasoning, estimation and prediction are the means of statistical methods.

DR. P.K. Bose and Prof. C.R. Rao are eminent Indian statisticians.

Statistics helps in making predictions and estimates. With the help of figures (data) collected over a period of time, rainfall patterns of a specific city over a given period of time can be analyzed and a fair estimate about next season can be made.

The word statistics can be used with two meanings.

• Collecting data in systematic form and presenting numerical data

• Processing the numerical data and finding conclusions

The following figure shows some information about population. See the figure and try to answer the questions below it.

(image will be uploaded soon)

What information about population does the figure represent?

• Find the time interval in which the information has been collected.

• The time interval is divided into how many parts? How many years does each part contain?

• From the figure can you say that the birth rate is constantly declining?

• From the figure can you say that the death-rate is constant declining?

• Write the census year which shows the maximum birth rate. How much is it?

• Find the time interval in which the death-rate has fallen suddenly.

We realize that the figure contains a variety of useful information that is easy to understand and analyze and this is what statistics helps us in.

Today, statistics has become a part of all branches of knowledge that we study or know. It is used to study problems in Biology, Psychology, Economics, Education, Sociology, Trade, Industry etc.

The statistical method of studying a problem mainly consists of the following steps:

• To collect numerical data about the situation or problem

• To present the collected data systematically

• To analyze the data

• To interpret the data and conclude conclusions from it

The numerical expressions that represent the characteristic of a group (a large number of numerical data) are called measures of central tendency (or averages).

An average which is used to represent a whole series should not have either the lowest value or the highest value in the group but a value which is somewhere between the two extremities, preferably in the centre, where most of the items of the group cluster.

There are many types of statistical averages, for example mean, median and mode.

2. Numerical Data and Its Representation

A class consists of $64$ students. The teacher gives a test in English. The scores each student obtained out of $100$ are as follows:

Table 1

These marks are the numerical data called raw data collected with the purpose of knowing attainment of the class in English.

The way in which the scores are presented hardly gives any idea about attainment of the class in English. It is necessary to present any such numerical data in a systematic manner so as to know some meaning of it.

There are different methods of presenting numerical data in systematic form.

a. Arranged Data

Arranged Numerical Data

In Table $2$ the same data is arranged in ascending order. Observe the table.

Table 2

Information Gathered from the Table:

The minimum and maximum marks are $14$ and $73$ respectively. Some students have scored equal marks. The score $40$ has occurred five times, which is the maximum repetition.

Drawbacks of this Method:

• The method is very tedious.

• Often the numerical data is large and arranging them in the ascending order would take a lot of time.

• Even after doing it, we do not get any prominent information from it.

Therefore to get more information, it becomes necessary to put it in a concentrated form.

b. Ungrouped Frequency Distribution Table

The table $3$ given below is the ungrouped frequency distribution of the data of table $1$. The table is prepared as follows:

Start from the smallest number in the data and then write the numbers one below the other till the last. Now to track the repeated occurrence of numbers make a tally mark like this '|' next to that number. The fifth mark is drawn diagonally crossing the first four marks (||||in this way). This makes counting of tally marks easy. Make the sixth tally mark at a small distance from the first five. The total number of tallies or count corresponding to a number in the data is called the frequency of the number.

Table 3

Such a frequency distribution table makes it very easy to observe and also the numerical data is more informative. Just by looking at the table it can be concluded that the number of students scoring marks between $44$ and $58$ is very large.

Drawback

The table has a large span.

This drawback can be removed by creating a grouped frequency distribution table.

c. Grouped Frequency Distribution Table

In this method, the numerical data is distributed into convenient groups or classes using tally marks.

In the table given below, the data is classified into groups $11$ to $20$, $21$ to $30$,….,$71$ to $80$.

Table 4

The Important Points of this Table are:

• The method of preparing this type of table is easy.

• The numerical data is in a concise form.

• The individual nature of the data has disappeared and now the table represents the nature of the group.

• With the help of this table, the data can be analysed to some extent.

3. Some Terms Used in Statistics

a. Raw Numerical Data

Table $1$ shows marks of each student in a class. In terms of statistics, they are the scores of individuals of a group. This is the primary information collected. Such information is called Raw numerical data.

b. Range of the Data

In table $2$, the numbers are written in order which can be called as the data presented in order. Range of the data is defined as the difference between the largest and the smallest number of the data. The range of data in table $2$ is $73 - 14 = 59$.

c. Class Limit

In table $4$, the numerical data are presented dividing into groups. Each of them is called a class. The end values of a class are the limits of the class or the class-limits. The smaller of the two values is called the lower class-limit and the larger is called the upper class-limit.

d. Class Interval

Class interval is the range of that class.

e. Frequency of the Class

The number of tally marks or count corresponding to a class is called the frequency of the class.

f. Cumulative Frequency Table

The cumulative frequency less than the upper limit of a certain class is equal to the sum of the frequency of that particular class and the frequencies of all classes preceding it.

Table $5$ is a cumulative frequency table prepared from table $4$.

Table 5

In this table, the column of cumulative frequency shows the number of scores less than the upper class limit of the corresponding class. Hence such a table is called 'a cumulative frequency less than' table.

Similarly the cumulative frequency more than the lower limit of a class is equal to the sum of the frequency of that particular class and the frequencies of all the class succeeding to it. The table $6$ given below shows the cumulative frequency of this type.

Table $6$

In this table, the column of cumulative frequency shows the number of scores more than the lower class limit of the corresponding class. Hence, such a table is called a cumulative-frequency-more-than table.

To frame a table like this, record classes and their corresponding frequencies in a table. Write the cumulative frequencies from bottom to top of the table. The last class is $71$ to $80$ and its corresponding frequency is $4$ so, the cumulative frequency class $71$ to $80$ is $4$. The class preceding is $61$ to $70$ and its frequency is $9$.

Hence the cumulative frequency of class $71$ to $80$ is $4 + 9 = 13$.

4. Representation of Statistical Data

Numerical data can be represented in two forms:

• Diagrammatic representation

• Graphical representation

a. Diagrammatic Representation

There are two different forms of diagrammatic representation of numerical data.

• Bar diagram

• Pie diagram

b. Graphical representation

Some graphical methods of representing numerical data are

• Histogram

• Frequency polygon

• Ogive curve

5. Graphical Representation of Statistical Data

a. Histogram

A 2D representation in graphical form of a continuous frequency distribution is known as histogram, also a special type of bar diagram.

(image will be uploaded soon)

A histogram summarizes data pictorially and shows the distribution of the data. They are constructed from a frequency table that is a summary of the data. The general format for a histogram is a vertical scale which demonstrates frequencies and a horizontal scale which represents the individual intervals also known as classes. Bars are used to represent each individual interval where the height of the bar corresponds to the frequency.

A histogram is drawn by the steps given below.

• Draw a grouped frequency distribution table of the given data.

• Show class-limits on $X$-axis with a suitable scale.

• Show frequencies on $Y$-axis with a suitable scale.

• Draw rectangles joined to each other having base equal to the class limits and heights proportional to the frequencies.

A frequency distribution table is shown below.

(image will be uploaded soon)

From the above histogram the following points can be inferred.

• It is not necessary that the scale on the $X$-axis and the $Y$-axis be the same, it can be different considering the nature of the data, size of the paper etc and it should look neat and attractive.

• The position of origin on the $Y$-axis is according to the scale, which is not so on the $X$-axis. This is indicated by drawing


  mark on the $X$-axis near the origin and if necessary, the mark can be made on the $Y$-axis or on both axes.

• In a histogram, it is necessary for the adjacent rectangles to be to each other. Therefore, if the given classes are non continuous, it becomes important to make them continuous e.g.; if the classes are $2$ to $5$, $6$ to $9$, $10$ to $13$,…. It should be as $1.5$ to $5.5$, $5.5$ to $9.5$, $9.5$ to $13.5$…

b. Frequency Polygon

A frequency polygon is a way of picturing data in which the class mark is plotted on the horizontal axis and the frequency of the class on the vertical axis and the points are connected. It is completed by extending the class marks one-class width on either end with a frequency of zero for both.

(image will be uploaded soon)

A frequency polygon can be drawn by following the given steps.

(image will be uploaded soon)

• First draw a histogram from the given data.

• Join all the mid-points of the upper horizontal sides of the rectangles in the histogram in a straight line.

• It is assumed that the class before the first class and the class after the last class in the classification exist and the frequency of each of them is zero. Class marks of those classes are combined with the mid-points of the upper horizontal sides of the extreme rectangles of the histogram.

The figure above is the frequency polygon drawn with the help of the histogram. Observe it carefully. A frequency polygon can also be drawn without drawing a histogram.

By applying the method of point plotting, a frequency polygon can be drawn as follows:

(image will be uploaded soon)

6. Recap

Graphical representation of statistical data implies construction of

a. Histogram

Class-intervals on the x-axis and cumulative frequencies on the y-axis, the corresponding rectangles are drawn.

b. Frequency polygon

Draw a histogram and then join the midpoints of the rectangles by straight lines.

7. Arithmetic Mean

a. Arithmetic Mean for Ungrouped Data

The arithmetic mean of a set of raw data is the division of the sum of all the values of the variable given by the total number of values.

Let '$n$' be the total number of values and ${x_1}$, ${x_2}$, ${x_3}...{x_n}$ be the values recorded in the data. Then the arithmetic mean is written as follows,

${\text{Arithmetic Mean}} = \overline x  = \dfrac{{{x_1} + {x_2} + {x_3} + ... + {x_n}}}{n}$

or $\overline x  = \dfrac{{\sum {{x_n}} }}{n}$

The symbol $\sum $ denotes: ' Sum of '

b. Direct Method for Arithmetic Mean of Ungrouped Data

In the previous example, all the $50$ marks are not distinct, for example, $3$ students have $7$ marks each, $4$ students have $19$ marks each etc.

Therefore the sum can be written as

$\sum {{x_n} = 3 \times 7 + 4 \times 19 + ... + 4 \times 91} $

Arithmetic Mean $ = \dfrac{{\sum {fx} }}{n} = \dfrac{{2624}}{{50}} = 52.48$

c. Direct Method for Arithmetic Mean of Grouped Data

Example:

Find the arithmetic mean for the given frequency distribution.

${\text{Mean}} = \dfrac{{\sum {fx} }}{N}$

$ = \dfrac{{2590}}{{50}}$

${\text{Mean}} = 51.80$

8.For Calculating the Mean Assumed Mean or Short-Cut Method

a. Short-Cut Method for Ungrouped Data

In this method, an assumed mean $\left( A \right)$ is taken from the scores, usually about the middle. If there are two middle scores, the one which has the higher frequency is taken as the assumed mean and then the arithmetic mean is obtained by using the formula.

${\text{Mean}} = A + \dfrac{{\sum {fd} }}{{\sum f }}$

where $A$ is the assumed mean, $d$ is the deviation of $x$ from the assumed mean $A$.

b.  Shortcut Method for Grouped Data

In this method, an assumed mean $\left( A \right)$ is taken from the mid-values near about the middle of the table and then the Arithmetic Mean is obtained by using the following formula,

${\text{Mean}} = A + \dfrac{{\sum {fd} }}{{\sum f }}$

where, '$A$' is the assumed mean, '$d$' is the deviation of '$x$' from assumed mean '$A$'.

c. Step-Deviation Method

According to this method,

${\text{Mean}} = A + \dfrac{{\sum {fd} }}{{\sum f }} \times i$

where, $A = {\text{Assumed Mean}}$, $u = \dfrac{{x - A}}{i}$ and

$i = {\text{class size}}$ [i.e., upper limit - lower limit]

d. Median and Mode

Median

When the given statistical data is arranged in ascending or descending order of their values, then the value of the middle term is called the median.

Let '$n$' be the number of scores in ascending or descending order.

Then, ${\text{Median = }}{\left( {\dfrac{n}{2} + 1} \right)^{th}}term$, '$n$' is odd

${\text{Median = }}\dfrac{{{{\left( {\dfrac{n}{2}} \right)}^{th}}term + {{\left( {\dfrac{n}{2} + 1} \right)}^{th}}term}}{2}$, when '$n$' is even

Mode

The number which appears the highest times in the given statistical data is called mode or it is the number whose frequency is maximum.
