NCERT Solutions for Class 9 Maths Chapter 5 Exercise 5.6 (2026-27)

Exercise Set 5.6

Question 1.

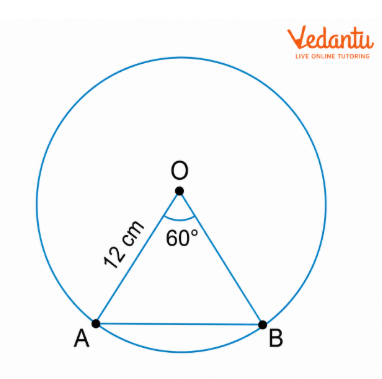

In a circle with centre O, the central angle AOB is 60°. If the radius of the circle is 12 cm, what is the length of the chord AB?

Solution:

OA and OB are radii of the same circle.

Therefore:

OA = OB = 12 cm

So, ∆AOB is an isosceles triangle.

Given:

∠AOB = 60°

Let:

∠OAB = ∠OBA = x

Using the angle-sum property of a triangle:

x + x + 60° = 180°

2x = 120°

x = 60°

Thus, all three angles of ∆AOB are 60°. Therefore, ∆AOB is equilateral.

Hence:

AB = OA = OB = 12 cm

Therefore, the length of chord AB is 12 cm.

Question 2.
Let A and B be two points on a circle with centre O.

(i) Are there points X, Y on the circle, on the same side of AB, such that ∠AXB is different from ∠AYB?

Solution:
No. Points X and Y lie on the same segment of the circle formed by chord AB.

Angles subtended by the same chord at points lying in the same segment are equal.

Therefore:

∠AXB = ∠AYB

Hence, these two angles cannot be different.

(ii) Is it true that if ∠AXB = ∠AYB, then X and Y lie on the same side of the circle?

Solution:
No, this is not always true.

For example, if AB is a diameter, then the angle subtended by AB at any point on the circle is 90°. Therefore, points X and Y may lie on opposite sides of AB and still satisfy:

∠AXB = ∠AYB = 90°

Hence, equal angles do not always mean that X and Y lie on the same side of AB.

(iii) If ∠AXB = ∠AYB, and X and Y do not lie on the circle, does the circle through A, B, and X also pass through Y?

Solution:
If X and Y lie on the same side of AB and

∠AXB = ∠AYB, then A, B, X, and Y are concyclic.

Therefore, the circle passing through A, B, and X will also pass through Y.

However, the condition that X and Y lie on the same side of AB is important.

Question 3.

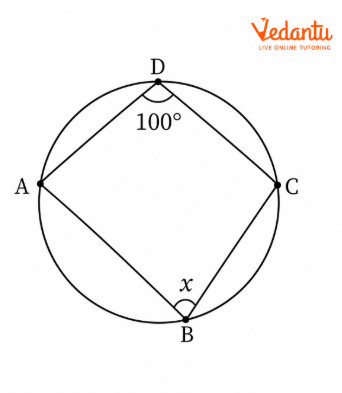

Find x in Fig. 5.26.

Solution:
Given:

∠ADC = 100°

The angle subtended by arc ABC at the centre is twice the angle subtended by it at the circumference.

Therefore:

Reflex central angle corresponding to arc ABC
= 2 × 100°
= 200°

The complete angle around the centre is 360°.

Therefore, the central angle corresponding to the remaining arc ADC is:

360° - 200° = 160°

The angle x subtended by this arc at the circumference is half the corresponding central angle.

x = 160°/2

x = 80°

Therefore, x = 80°.
