NCERT Solutions for Class 6 Maths Chapter 14: Practical Geometry - Exercise 14.4

Exercise 14.4

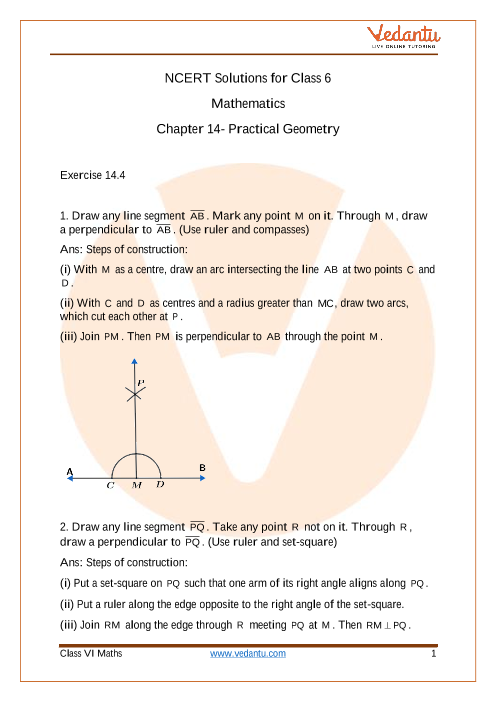

1. Draw any line segment $\overline {AB} $. Mark any point $M$ on it. Through $M$, draw a perpendicular to $\overline {AB} $. (Use ruler and compasses)

Ans: Steps of construction:

(i) With $M$ as a centre, draw an arc intersecting the line $AB$ at two points $C$ and $D$.

(ii) With $C$ and $D$ as centres and a radius greater than $MC$, draw two arcs, which cut each other at $P$.

(iii) Join $PM$. Then $PM$ is perpendicular to $AB$ through the point $M$.

2. Draw any line segment $\overline {PQ} $. Take any point $R$ not on it. Through $R$, draw a perpendicular to $\overline {PQ} $. (Use ruler and set-square)

Ans: Steps of construction:

(i) Put a set-square on $PQ$ such that one arm of its right angle aligns along $PQ$.

(ii) Put a ruler along the edge opposite to the right angle of the set-square.

(iii) Join $RM$ along the edge through $R$ meeting $PQ$ at $M$. Then $RM \bot PQ$.

3. Draw a line $l$ and a point $X$ on it. Through $X$, draw a line segment $\overline {XY} $ perpendicular to $l$. Now draw a line perpendicular to $\overline {XY} $ at $Y$. (use ruler and compasses)

Ans: Steps of construction:

(i) Draw a line '$l$' and take point $X$ on it.

(ii) With $X$ as the centre, draw an arc intersecting the line '$l$' at two points $A$ and $B$.

(iii) With $A$ and $B$ as centres and a radius greater than $XA$, draw two arcs, which cut each other at $C$.

(iv) Join $AC$ and produce it to $Y$. Then $XY$ is perpendicular to '$l$'.

(v) With $D$ as the centre, draw an arc intersecting $XY$ at two points $C$ and $D$.

(vi) With $C$ and $D$ as centres and radius greater than $YD$, draw two arcs, which cut each other at $F$.

(vii) Join $YF$, then $YF$ is perpendicular to $XY$ at $Y$.
