Sketch and label tubular tower fermenter.

Answer 1

Hint: A bioreactor or fermenter provides the optimal condition for achieving the desired product by providing optimum growth conditions such as temperature, pH, oxygen, etc. Which are all important factors for growth.

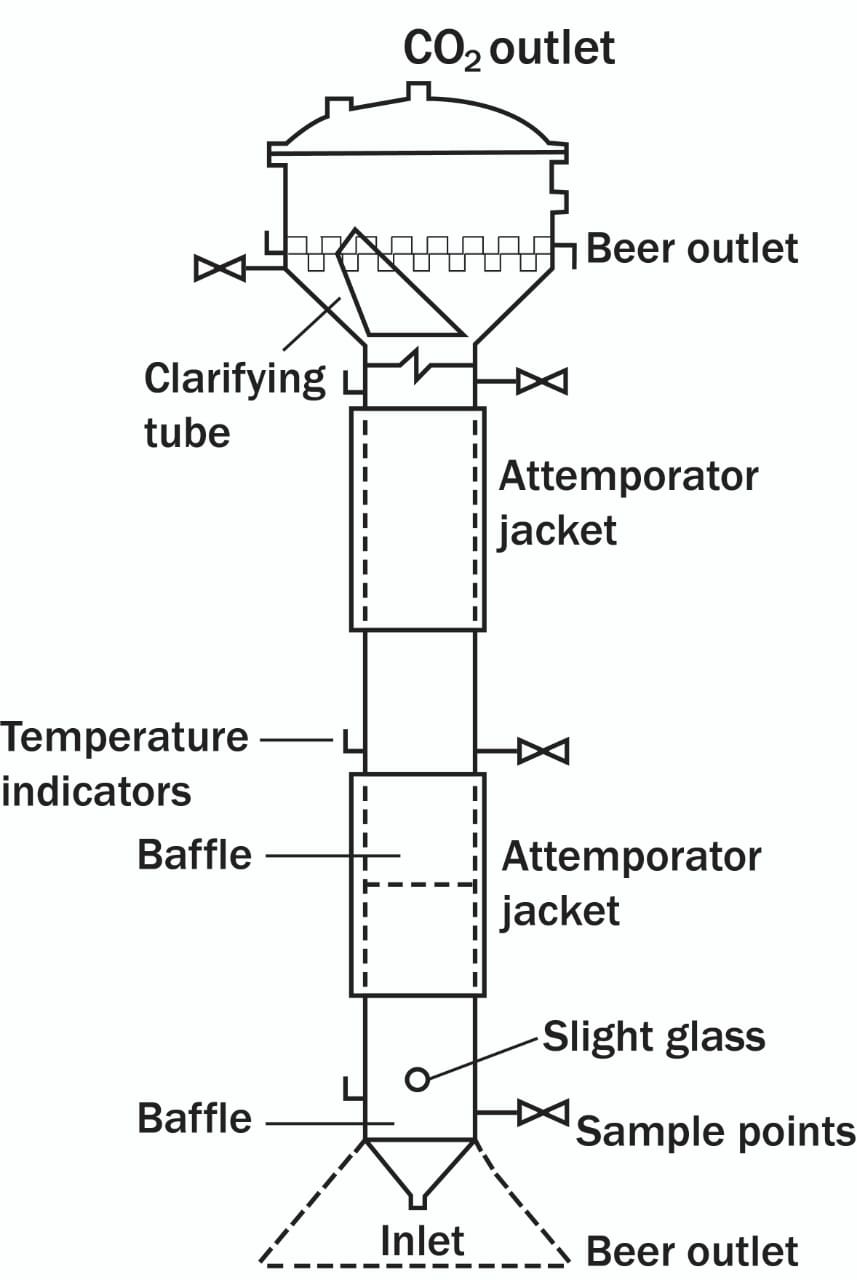

Complete answer: Diagram of tubular tower fermenter.

As we can see in the diagram there is a ${CO_2}$ outlet. At the top side of the tubular tower fermenter.
As we come down we see a clarifying tube that is used for clarification.
There are two Attemporator jackets in between as a temperature indicator.
A temperature indicator is used for the indication of the temperature at any particular time.
There is also an inlet downside to the diagram. And tubular tower fermenters also include Baffle, slight glass, and sample points.
There are also beer outlets for which the tubular tower fermenter is used.

Additional information:
There are many bioreactors or fermenters. The most commonly used bioreactors are of stirring type.
A stirred–tank reactor is usually cylindrical or with a curved base to facilitate the mixing of the reactor contents.
The stirrer facilities even mixing and oxygen availability throughout the bioreactor.
Alternatively, the air can be bubbled through the reactor. The bioreactor has an aggregator system.
It also has an oxygen delivering system and a foam control system. With a pH and temperature controlling system.
There are also sampling ports so that small amounts of the culture can be withdrawn periodically.

Note: Small volume cultures can not yield appreciable quantities of products. For the production of large quantities, the development of bioreactors with large volumes of culture can be processed.
