Question

In a cyclotrimetaphosphoric acid molecule, how many single and double bonds are present?
(A) 3 double bonds, 9 single bonds
(B) 6 double bonds, 6 single bonds
(C) 3 double bonds, 12 single bonds
(D) Zero double bonds, 12 single bonds

Answer 1

Hint: The acids containing the element oxygen are oxoacids. These oxoacids contain at least one other element and at least one hydrogen atom bonded to an oxygen atom. Like phosphorus, sulfur, and fluorine will form this type of oxoacids. Sometimes these oxoacids are also called oxyacids.

Complete step by step answer:
Phosphorus forms many oxoacids are ${{H}_{3}}P{{O}_{2}},{{H}_{3}}P{{O}_{4}},{{H}_{3}}P{{O}_{4}}$ , etc. In oxoacids of phosphorus, P is tetrahedrally surrounded by other atoms. All of these are known to form at least one P-H bond and an O-H bond.
P-P bonds or P-H bonds are also found including P=O bonds in poly oxoacids of phosphorus. The oxidation number of P is less than +5 in oxoacids of phosphorus.

Name	Formula	The oxidation state of Phosphorous	Characteristics of bonds and their number
hypo phosphorous	${{H}_{3}}P{{O}_{2}}$	+1	One P-OH,Two P-H,One P=O
Ortho phosphorous	${{H}_{3}}P{{O}_{3}}$	+3	two P-OH,one P-H,One P=O
Pyro phosphoric acid	${{H}_{3}}P{{O}_{4}}$	+5	Three P-H,One P=O
Metaphosphoric acid	${{(HP{{O}_{3}})}_{n}}$	+5	Three p-OH,Three P=O,Three P-O-P

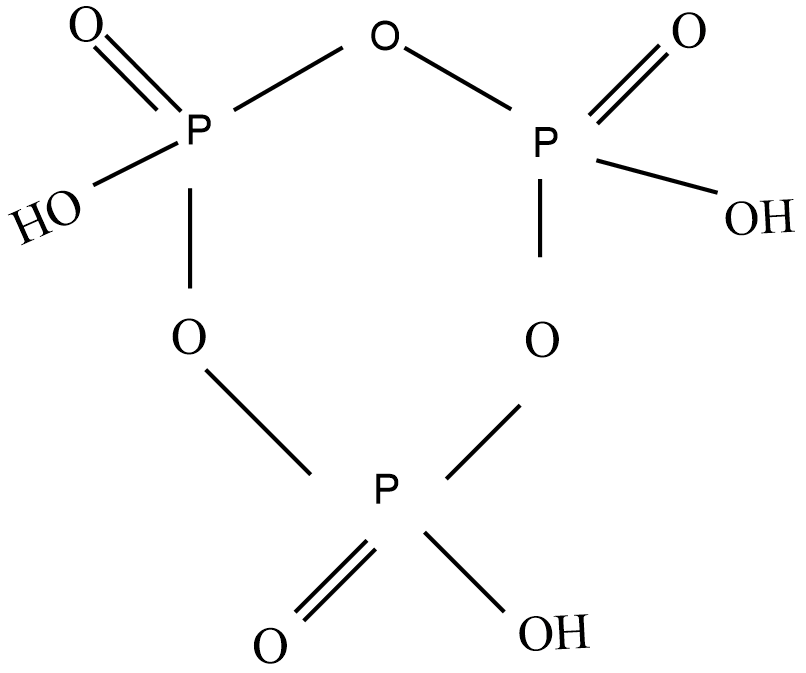

Cyclotrimetaphosphoric acid molecule is a type of metaphosphoric acid the molecular formula is ${{(HP{{O}_{3}})}_{3}}$ and the structure is:

From the above structure of Cyclotrimetaphosphoric acid molecule, there are 3 P=O bonds, 3 P-OH bonds, and 3 O-P-O bonds. Hence, a total of 3 double bonds and12 single bonds.So, Cyclotrimetaphosphoric acid molecule has 3 double bonds and 12 single bonds.
So, the correct answer is “Option C”.

Note: The oxoacids of phosphorus which contain P-H bonds have strong reducing agents. Out of all oxoacids of phosphorus, hypophosphorous is a strong reducing agent, which contains two P-H bonds and reduces.
