NCERT Solutions for Class 8 Maths Chapter 5 - Data Handling

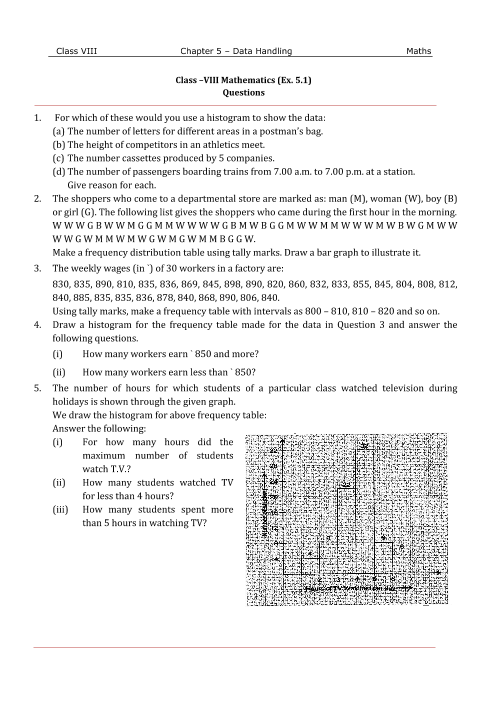

Exercise: 5.1

1. For which of these would you use a histogram to show the data:

(a) The number of letters for different areas in a postman’s bag.

(b) The height of competitors in an athletics meet.

(c) The number cassettes produced by \[\text{5}\] companies.

(d) The number of passengers boarding trains from \[\text{7}\text{.00}\] a.m. to \[\text{7}\text{.00}\] p.m. at a station. Give reason for each.

Ans:  Histogram can only be formed, if there is a class interval.

(a) The number of letters for different areas in a postman’s bag doesn’t have class interval, so histogram can’t be used.

(b) The height of competitors in an athletics meet can be divided in into class interval, so histogram is used to show data.

(c) The number cassettes produced by \[\text{5}\] companies do not have class interval; histogram is not used here.

(d) The number of passengers boarding trains from \[\text{7}\text{.00}\] a.m. to \[\text{7}\text{.00}\] p.m. at a station can be divided into class interval. Histogram is used to show data.

So, for option (b) and (d), we would use histogram to show data, because in these cases, data can be divided into class-intervals.

2. The shoppers who come to a departmental store are marked as: man (M), woman (W), boy (B) or girl (G). The following list gives the shoppers who came during the first hour in the morning.

W W W G B W W M G G M M W W W W G B M W B G G M W W M M W W W M W B W G M W W W W G W M M W M W G W M G W M M B G G W.

Make a frequency distribution table using tally marks. Draw a bar graph to illustrate it.

Ans: The frequency distribution table using tally marks:

(Image will be uploaded soon)

Illustration of data by bar graph:

(Image will be uploaded soon)

3. The weekly wages (in `) of \[\text{30}\] workers in a factory are:

\[\text{830}\], \[\text{835}\], \[\text{890}\], \[\text{810}\], \[\text{835}\], \[\text{836}\], \[\text{869}\], \[\text{845}\], \[\text{898}\], \[\text{890}\], \[\text{820}\], \[\text{860}\], \[\text{832}\], \[\text{833}\], \[\text{855}\], \[\text{845}\], \[\text{804}\], \[\text{808}\], \[\text{812}\], \[\text{840}\], \[\text{885}\], \[\text{835}\], \[\text{835}\], \[\text{836}\], \[\text{878}\], \[\text{840}\], \[\text{868}\], \[\text{890}\], \[\text{806}\], \[\text{840}\].

Using tally marks, make a frequency table with intervals as \[\text{800-810}\], \[\text{810-820}\] and so on.

Ans: Representation of data using frequency table using tally marks:

(Image will be uploaded soon)

4. Draw a histogram for the frequency table made for the data in Question 3 and Ans the following questions.

(i) How many workers earn ` \[\text{850}\] and more?

(ii) How many workers earn less than ` \[\text{850}\]?

Ans:

(i) \[10\] workers can earn more than ` \[\text{850}\].

(ii) \[20\] workers earn less than ` \[\text{850}\].

(Image will be uploaded soon)

5. The number of hours for which students of a particular class watched television during holidays is shown through the given graph.

We draw the histogram for above frequency table:

Ans the following:

(i) For how many hours did the maximum number of students watch T.V.?

(ii) How many students watched TV for less than 4 hours?

(iii) How many students spent more than \[\text{5}\] hours in watching TV?

(Image will be uploaded soon)

Ans:

(i) The maximum number of students i.e., \[32\] watched T.V. for \[4-5\] hours.

(ii) Number of student watched T.V. for less than \[4\] hours are \[34\].

(iii) Number of student spent more than \[5\] hours in watching T.V. are \[14\].

Exercise: 5.2

1. A survey was made to find the type of music that a certain group of young people liked in a city.

Adjoining pie chart shows the findings of this survey.

From this pie chart, Ans the following:

(i) If \[\text{20}\] people liked classical music, how many young people were surveyed?

(ii) Which type of music is liked by the maximum number of people?

(iii) If a cassette company were to make \[\text{1000}\] CD’s, how many of each type would they make?

(Image will be uploaded soon)

Ans :

(i) Here \[\text{10 }\!\!%\!\!\text{ }\] represents \[\text{100}\] people.

Therefore \[20%\] represents = \[\dfrac{100\times 20}{10}=200\] people.

Hence, \[200\] people were surveyed.

(ii) \[40%\] of people likes light music. So, light music is liked by the maximum number of people.

(iii) Total no. of CD’s to be made by cassette company= \[1000\]

Number of CD’s of classical music = \[\dfrac{10\times 1000}{100}=100\]

Number of CD’s of semi-classical music = \[\dfrac{20\times 1000}{100}=200\]

Number of CD’s of light music = \[\dfrac{40\times 1000}{100}=400\]

Number of CD’s of folk music = \[\dfrac{30\times 1000}{100}=300\]

2. A group of \[\text{360}\]people were asked to vote for their favourite season from the three seasons rainy, winter and summer.

(i) Which season got the most votes?

(ii) Find the central angle of each sector.

(iii) Draw a pie chart to show this information.

(Image will be uploaded soon)

Ans:

(i) Winter season got the greatest number of votes i.e., \[150\].

(ii) Central angle of summer season = \[\dfrac{90{}^\circ \times 360{}^\circ }{360{}^\circ }=90{}^\circ \]

Central angle of rainy season = \[\dfrac{120{}^\circ \times 360{}^\circ }{360{}^\circ }=120{}^\circ \]

Central angle of winter season = \[\dfrac{150{}^\circ \times 360{}^\circ }{360{}^\circ }=150{}^\circ \]

(iii) Pie chart to show the above information:

(Image will be uploaded soon)

3. Draw a pie chart showing the following information. The table shows the colours preferred by a group of people.

Ans: Here, central angle = \[360{}^\circ \] and total number of people = \[36\]

Pie chart showing above information:

(Image will be uploaded soon)

4. The adjoining pie chart gives the marks scored in an examination by a student in Hindi, English, Mathematics, Social Science and Science. If the total marks obtained by the students were \[\text{540}\], Ans the following questions:

(i) In which subject did the student score \[\text{105}\] marks?

(Hint: for \[\text{540}\] marks, the central angle = \[\text{360 }\!\!{}^\circ\!\!\text{ }\] . So, for \[\text{105}\] marks, what is the central angle?)

(ii) How many more marks were obtained by the student in Mathematics than in Hindi?

(iii) Examine whether the sum of the marks obtained in Social Science and Mathematics is more than that in Science and Hindi.                        (Hint: Just study the central angles)

(Image will be uploaded soon)

Ans:

i. The subject in which the student scored \[105\] marks in Hindi.

ii. Marks obtained in Mathematics = \[135\]

Marks obtained in Hindi = \[105\]

Difference = \[135-105=30\]

Thus, \[30\] more marks were obtained by the student in Mathematics than in Hindi.

iii. The sum of marks obtained in Social Science and Mathematics =\[97.5+135=232.5\]

iv. The sum of marks obtained in Science and Hindi = \[120+105=225\]

Yes, the sum of the marks in Social Science and Mathematics is more than the marks in Science and Hindi.

5. The number of students in a hostel, speaking different languages is given below. Display the data in a pie chart.

Ans:

Pie chart for the above given data is as follows:

(Image will be uploaded soon)

Exercise: 5.3

1. List the outcomes you can see in these experiments.

a) Spinning a wheel

b) Tossing two coins together

(Image will be uploaded soon)

Ans:

a) There are four letters A, B, C and D in a spinning wheel. So, by spinning the wheel we will get total 4 outcomes.

b) When two coins are tossed together. There will be four possible outcomes: HH, HT, TH, TT.

(H means head and T means tail. HT means head on first coin and tail on second coin and so on.)

2. When a die is thrown, list the outcomes of an event of getting:

1. (a) a prime number (b) not a prime number

2. (a) a number greater than \[\text{5}\] (b) a number not greater than \[\text{5}\]

Ans:

(i) (a) Number of prime number between \[1-6\] are \[2,\text{ }3\]and \[5\]. Outcomes of an event of getting a prime number are \[2,\text{ }3\]and \[5\].

(b)Number of not prime number between \[1-6\] are \[1,\text{ 4}\]and \[6\]. Outcomes of an event of not getting a prime number are \[1,\text{ 4}\]and \[6\].

(ii) (a) Outcomes of an event of getting a number greater than \[5\] is \[6\].

(b) Outcomes of an event of not getting a number greater than \[5\] are \[1,\text{ 2, 3, 4}\]and \[5\].

3. Find the:

a. Probability of the pointer stopping on D in (Question 1 (a)).

b. Probability of getting an ace from a well shuffled deck of \[\text{52}\] playing cards.

c. Probability of getting a red apple. (See figure alongside)

Ans:

a. In a spinning wheel, there are five pointers A, A, B, C and D i.e., \[5\]outcomes. Pointer stopping at D which is \[1\] outcome.

(Image will be uploaded soon)

So, the probability of the pointer stopping on D = \[\dfrac{1}{5}\]

b. In a deck of \[\text{52}\] playing cards, there are \[4\] aces. So, there are \[4\] events of getting an ace.

So, probability of getting an ace = \[\dfrac{4}{52}=\dfrac{1}{13}\]

c. Total number of apples = \[7\]

Number of red apples among all = \[4\]

Probability of getting a red apple = \[\dfrac{4}{7}\]

4. Numbers \[\text{1}\] to \[\text{10}\]are written on ten separate slips (one number on one slip), kept in a box and mixed well. One slip is chosen from the box without looking into it. What is the probability of:

i. getting a number \[\text{6}\].

ii. getting a number less than \[\text{6}\].

iii. getting a number greater than \[\text{6}\].

iv. getting a \[\text{1}\]-digit number.

Ans:

i. Outcome of getting \[6\] from ten separate slips is \[1\]. Therefore, probability of getting a number \[6\] is \[1\].

ii. Numbers less than \[6\] are \[1,\text{ 2, 3, 4}\] and \[5\] which are five. So, total outcomes are \[5\]. Therefore, the probability of getting a number less than \[6\] is \[\dfrac{5}{10}=\dfrac{1}{2}\].

iii. Numbers greater than \[6\] out of ten that are \[7,\text{ 8, 9, 10}\].  So, there are \[4\]possible outcomes. Therefore, the probability of getting a number greater than \[6\] is \[\dfrac{4}{10}=\dfrac{2}{5}\].

iv. One-digit numbers from \[1-10\] are \[1,2,3,4,5,6,7,\text{ 8, 9, 10}\]. Therefore, the probability of getting a one-digit number is \[\dfrac{9}{10}\].

5. If you have a spinning wheel with \[\text{3}\] green sectors, \[\text{1}\] blue sector and \[\text{1}\] red sector, what is the probability of getting a green sector? What is the probability of getting a none-blue sector?

Ans:  There are total five sectors (\[3+1+1\]). \[3\] sectors are green out of five sectors.

The probability of getting a green sector is \[\dfrac{3}{5}\].

There is only \[1\] blue sector out of five sectors. Non-blue sectors will be \[5-1=4\] sectors.

The probability of getting a non-blue sector = \[\dfrac{4}{5}\]

6. Find the probability of the events given in Question \[\text{2}\].

Ans: When a die is thrown, there are total six outcomes, i.e., \[1,2,3,4,5\] and \[6\].

(i) (a) \[2,3,5\] are prime numbers. So, there are \[3\] outcomes out of \[6\].

Therefore, probability of getting a prime number = \[\dfrac{3}{6}=\dfrac{1}{2}\]

(b) \[1,4,6\] are non-prime numbers. So, there are 3 outcomes out of 6.

Therefore, probability of getting a non-prime number = \[\dfrac{3}{6}=\dfrac{1}{2}\]

(ii) (a) Only \[6\] is greater than \[5\]. So, there is only one outcome out of \[6\].

Therefore, probability of getting a number greater than 5 = \[\dfrac{1}{6}\]

(b) Numbers not greater than 5 are \[1,2,3,4\] and \[5\]. So there are \[5\] outcomes out of \[6\].

Therefore, probability of not getting a number greater than 5 = \[\dfrac{1}{6}\]

List of Topics Covered Under NCERT Solutions for Class 8 Maths Chapter 5 - Data Handling

Here are the important topics from the chapter 5 of class 8 Maths - Data Handling

Important Points

• Data is the collection of information.

• Data can be pictorially represented by using the symbol.

• Information can be displayed and compared using bar graph or pie chart.

• Double bar graphs can be used to represent two data at the same time.

• The data which are unorganized is said to be raw data.

• Before converting it into a graph or chart, it is necessary to convert it into organized data.

• To minimize the data, can group similar data and keep them in a particular set.

NCERT Solutions for Class 8 Maths Chapter 5 Data Handling - PDF Download

• Numerical Observations that are available to us as unorganized form is called raw data.

• We need to organize the data collected systematically in order to draw meaningful inferences.

• Each numerical value in data is known as observation.

• Class is a group of variables. The difference between the lower limit and the upper limit of a class is called class size or class width.

• Class mark is a specific point in the middle of the class interval. The lower limit is included in a class interval but upper limit is excluded.

• A collection of observations collected from the direct source is called raw data or primary data.

• A collection of observations collected from secondary sources like newspaper, T.V, magazines or the Internet, is called secondary data.

• The difference between the highest and the lowest data values is called the range of the data.

• A systematic way of arranging the data in the form of a table is called tabulation of data.

• The mean or the arithmetic mean is the representation of some given observations in a collection of data. The average of the arithmetic mean (A.M) is given by: Mean   =   (Sum of all observations/Total number of observations)

• The Frequency of the data is the number of times a data value occurs in the set.

• The method of representing the data that exhibits the values of the variable and corresponding frequencies,  is called the frequency distribution.

• Average is a number that represents or expresses the central tendency of a group of observations or data. It is basically the midpoint in a set of data and then dividing the sum of values by their number.

• The arithmetic mean is the representation of observations of data.

Arithmetic Mean  = (Sum of all observations/Total number of observations)

• The mode is the value of the variable in a set of observations, which occurs most frequently. This is the highest occurring data. This representation of the data is called the mode of the data

• In a given data arranged in ascending or descending order of magnitude, the value of the middlemost term is called the median of the data. The median gives us the mid-point of an observation in a given data, which is arranged in ascending or descending order.

Note: In a given data, the values are arranged in ascending or descending order.

i.  the observations are divided equally in the median.

ii. If the collected data  has an odd number of items, the median is the middle    number.

iii. If the data has an even number of items, the median is the mean of two middle numbers.

• A bar graph is a pictorial representation of numbers using bars of uniform width.

• Grouped data can be presented using histogram. Histogram is a kind of bar graph, where the class intervals are shown on horizontal axis and heights of the bars show the frequency of the class interval. In histogram, there is no gap between the class intervals.

• The collected data can also be presented using a circle graph or pie chart. To demonstrate the relationship between a whole and its parts, we use pie charts.

• In a pie chart, the circle is divided into sectors and the angle of sector = (Value of item/sum of values of all items)x 360°

• If you have to find the percentage value of a component in the pie chart then the formula is

((Value of item/sum of values of all items)x 360°) x 100

• An experiment is an action that results in some good outcomes. There are some experiments whose outcomes have equal opportunity of occurring and so they are equally likely outcomes.

• Favourable outcomes are the outcomes that ensure the occurrences of an event.

• What happens, which may or may not happen is called chance. For example, when we throw a coin each time the outcome of every throw can be either a head or tail. It is a matter of chance that in one particular throw we get either of these.

• The measure of the chance is the probability of an event.

Probability of an Event = (Number of favourable outcomes/Total number of outcomes of the experiment),

where we suppose that all outcomes are alike.

• The probability of events P(E) that may occur can lie between 0 and 1. I.e., 0 ≤ P(E) ≤ 1.

• An event which is sure to happen is called a sure event. Therefore, P (sure event) = 1.

• An event that never happens is called an impossible event. Therefore, P(impossible event) = 0.

Benefit of Using Vedantu’s NCERT Solution

Countless students till today have benefitted from the NCERT Solutions provided by Vedantu. The solutions are designed by very experienced subject matter experts. They have designed the solutions in a very simple way by demonstrating in step wise so that it becomes self-explanatory. Vedantu has provided solutions to every question of the chapter and you can verify the answers with the solutions given.

This will increase your self-assurance and assist you in managing your time well throughout the examinations, which is crucial. You can entirely trust on the NCERT Answers offered by Vedantu if you have any questions about the subject. You should use this site to review your subjects and get higher exam grades. On Vedantu's website, which is open to everyone, you can download the pdf file for free. You can download on any device and practice as per your convenient time. You can carry the pdf anywhere and anytime.

Overview of the Chapter:

Why Vedantu?

Vedantu is one of the leading  online education portals which gives a platform to the students to learn their subjects in a holistic environment. Our experienced teachers can teach you the shortcuts and tricks to solve the difficult questions. The NCERT Solution for all subjects are prepared by experienced teachers in Vedantu. The solutions are 100% verified and designed as per the latest edition CBSE textbooks. Vedantu also provides assistance for the IIT-JEE , KVPY and NEET examinations. The most significant feature of Vedantu is that it provides live interaction sessions with our faculties on various subjects. Take the right decision to register with Vedantu and shape your career through us.

Conclusion

NCERT Solutions for Class 8 Maths Chapter 5 - "Data Handling" are an integral part of a student's mathematical journey. This chapter equips students with essential skills in data collection, organisation, and interpretation, which have practical applications across various disciplines. By delving into concepts such as mean, mode, median, and probability, these solutions foster a deeper understanding of statistical measures and probability theory. Moreover, the chapter introduces graphical representations like bar graphs, histograms, and pie charts, enhancing students' ability to visually convey and analyse data. Overall, these solutions not only promote mathematical proficiency but also nurture critical thinking and data literacy, preparing students to make informed decisions in an increasingly data-driven world.
