There are three sources of equal intensity with frequencies 401, 402, 403 vibrations/sec. The number of beats heard per second is
A) 1
B) 2
C) 3
D) 0
Answer
584.1k+ views
Hint
Use the principle of superposition and add the waves differing in their frequencies. The amplitude is maximum when $\cos 2\pi t$ is max which is possible when $t = 0,1,2...$. As the time interval between is one second the beat frequency is one second.
Complete step-by-step answer
Formation of beats is adding waves that differ in frequencies using the superposition principle. It is given that frequencies of three sources are 401, 402, 403 vibrations/sec.
The equation of the corresponding sources is given by,
${y_1} = A\sin 2\pi 400t$
${y_2} = A\sin 2\pi 401t$
${y_3} = A\sin 2\pi 403t$
According to the principle of superposition,
$y = {y_1} + {y_2} + {y_3}$
$y = A\sin (802\pi t)[1 + \cos 2\pi t]$
Here, the amplitude is maximum when $\cos 2\pi t$ is max.
Therefore,
$\cos 2\pi t = 1\,$ At $t = 0,1,2...$
Maximum sound is heard when $t = 0,1,2...$
And the time interval between each of them is one second so the beat frequency is 1s.
The correct option is (A).
Note

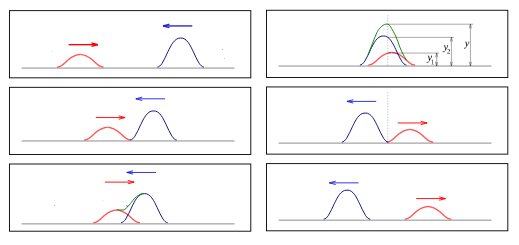

Principle of superposition: The displacement at any time due to a number of waves meeting simultaneously at a point in a medium is the vector sum of the individual displacements due to each one of the waves at that point at the same time.
Use the principle of superposition and add the waves differing in their frequencies. The amplitude is maximum when $\cos 2\pi t$ is max which is possible when $t = 0,1,2...$. As the time interval between is one second the beat frequency is one second.
Complete step-by-step answer
Formation of beats is adding waves that differ in frequencies using the superposition principle. It is given that frequencies of three sources are 401, 402, 403 vibrations/sec.
The equation of the corresponding sources is given by,
${y_1} = A\sin 2\pi 400t$
${y_2} = A\sin 2\pi 401t$
${y_3} = A\sin 2\pi 403t$
According to the principle of superposition,
$y = {y_1} + {y_2} + {y_3}$
$y = A\sin (802\pi t)[1 + \cos 2\pi t]$
Here, the amplitude is maximum when $\cos 2\pi t$ is max.
Therefore,
$\cos 2\pi t = 1\,$ At $t = 0,1,2...$
Maximum sound is heard when $t = 0,1,2...$
And the time interval between each of them is one second so the beat frequency is 1s.
The correct option is (A).
Note
Principle of superposition: The displacement at any time due to a number of waves meeting simultaneously at a point in a medium is the vector sum of the individual displacements due to each one of the waves at that point at the same time.
