Solve the following systems of linear equations graphically:
$\begin{align}
  & 3x+y=8 \\
 & 6x+2y=16 \\
\end{align}$

seo-qna
Last updated date: 28th Mar 2024
Total views: 402.6k
Views today: 10.02k
MVSAT 2024
Answer
VerifiedVerified
402.6k+ views
Hint: Here, we will sketch the graph of both the given lines and then we will check that at which point they intersect each other. This point of intersection will give us the solution to the given system of linear equations.

Complete step-by-step answer:

To solve a system of equations or simultaneous equations by the graphical method, we draw the graph for each of the equations and look for a point of intersections between the two graphs. The co-ordinates of the point of intersection will be the solution to the system of equations. The solution is such that it satisfies both the lines.
If the two lines become parallel to each other, that is they do not intersect then the system of equations has no solution and if the lines coincide, the system of equations has infinite number of solutions.
The system of equations given to us here is:
$\begin{align}
  & 3x+y=8...........\left( 1 \right) \\
 & 6x+2y=16..........\left( 2 \right) \\
\end{align}$
For the first line i.e. 3x+2y=8, we can give values of y corresponding to different values of x as follows:
When we take x= 1, we can write from equation (1):
$\begin{align}
  & 3\times 1+y=8 \\
 & \Rightarrow y=5 \\
\end{align}$
When we take x = 5, we have:
$\begin{align}
  & 3\times 5+y=8 \\
 & \Rightarrow y=-7 \\
\end{align}$
So, two points lying on 1st line are (1, 5) and (5, -7)
Similarly for the second line, i.e.6x+2y=16, we can give values of y corresponding to different values of x as follows:
When we take x =2, we can write from equation (2):
$\begin{align}
  & 6\times 2+2y=16 \\
 & \Rightarrow 12+2y=16 \\
 & \Rightarrow 2y=4 \\
 & \Rightarrow y=2 \\
\end{align}$
When we take x = 5, we have:
$\begin{align}
  & 6\times 5+2y=16 \\
 & \Rightarrow 30+2y=16 \\
 & \Rightarrow 2y=-14 \\
 & \Rightarrow y=-7 \\
\end{align}$
So, two points lying on 2nd line are (2, 2) and (5, -7).

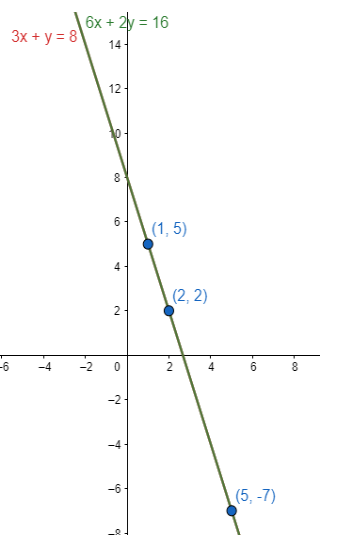

So, the graph of the given lines can be made as:
seo images


We can see that the graph of both the lines coincide with each other.
Hence, there are infinitely many solutions of the given system of equations.

Note: Students should note here that we can take any value of x to get a corresponding value of y but for our convenience we should prefer to take simple values. The graph must be made properly. We can also cross- verify the answer by solving the equations algebraically.
