Question

Kirchhoff's first law is given by \[\sum I=0\] and Kirchhoff's second law is given by\[\sum IR=0\], where the symbols have their usual meanings. Choose the correct option.
A. Kirchhoff’s first law is based on conservation of energy and the second law based on conservation of charge.
B. Kirchhoff’s second law is based on the conservation of energy and the first law is based on conservation of charge.
C. Both the laws based on conservation of momentum.
D. First law based on the conservation of momentum and second law on the conservation of charge.

Answer 1

Hint: This is a question of current electricity. Junction is any point in the circuit where the current can split. Use sign convention to find KVL and KCL. First law deals with the sum of current coming and leaving at a junction. Second law deals with the sum of potential differences plus the algebraic sum of e.m.f is equal to zero.

Complete step by step answer:

Kirchhoff’s laws are generally used to analyse the electrical circuit that is to calculate the current and resistance in the network. Kirchhoff's law Voltage law and current law are derived on the basis of principle of conservation of energy. Kirchhoff’s law is of two type:
1. Kirchhoff’s Current Law (KCL)
Statement: The algebraic sum of current entering and leaving at any junction in a circuit is zero.
$i.e.\sum\limits_{{}}^{{}}{i=0}$

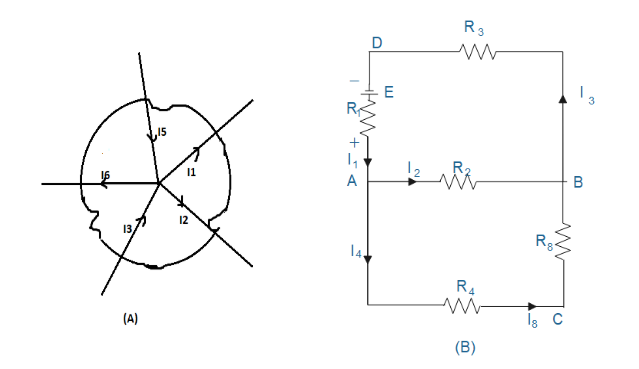

Consider a surface as containing the conductor meeting at a point P as shown in figure (a). Now, taking the current flowing away from the junction as positive and current flowing towards the junction as negative, then
\[\begin{array}{*{35}{l}}
   {{I}_{1}}-{{I}_{2}}+{{I}_{3}}-{{I}_{4}}+{{I}_{5}}=0 \\
   {{I}_{1}}+{{I}_{3}}={{I}_{2}}+{{I}_{4}}-{{I}_{5}} \\
\end{array}\]
Hence we can say that Kirchhoff’s law is based on conservation of charges because the sum of charges entering the junction is equal to the sum of current leaving the junction.

2. Kirchhoff’s Current Law (KVL)
Statement: The sum of voltage of sources and all potential drop (IR drop) in any closed loop of a network is zero.
While applying KVL, positive value of current is taken when we are travelling in the direction of current and e.m.f is taken negative when we travel from negative to positive electrode of source.
In ABDA loop,
${{I}_{1}}{{R}_{1}}+{{I}_{2}}{{R}_{2}}+{{I}_{3}}{{R}_{3}}=E$
In ABCA loop,
$\begin{align}
  & {{I}_{2}}{{R}_{2}}-{{I}_{5}}{{R}_{5}}-{{I}_{4}}{{R}_{4}}=0 \\
 & {{I}_{2}}{{R}_{2}}={{I}_{5}}{{R}_{5}}-{{I}_{4}}{{R}_{4}} \\
\end{align}$
Therefore, Kirchhoff’s second law is based on conservation of energy.

Note:
Do not get confused between ohm's law and Kirchhoff’ law. Kirchhoff’s laws are used to determine currents and potential difference in the complicated circuit. Ohms law is valid only for graphs passing through origin. Current is the rate of flow of electric charge. Steady state current is electric current which does not depend upon time.
