Question

Draw the diagram of a single-stage rocket and label the part.

Answer 1

Hint: Here we will draw a single-stage rocket and label its part. We will also discuss the parts of the rocket in the brief while labeling. Basically, there are two types of rockets single-stage and multistage. As the name suggests the single-stage is the one that has a single stage of propellants and engine.

Complete step-by-step solution:

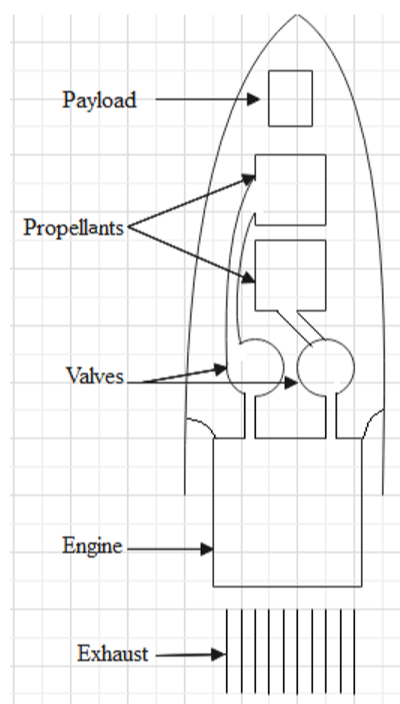

A labeled diagram of the single-stage rocket is given below:

The payload is the capacity of an aircraft to carry the load. In the case of a rocket, it is the capacity of carrying astronauts or the capacity of carrying satellites of a particular weight.
Propellants are the fuels of the rocket used for propulsion that is to push it upwards. Propellants are used as per the payload and amount of energy required to uplift the rocket.
Valves as we know are the device, which directly controls the flow of the liquid(here fuel).
The engine is the part of the rocket which contains motors and another machine that produces the energy to uplift the rocket with the help of fuel or propellants which is provided to it through valves.
The exhaust is the waste gas, which is released from the engine. In the case of the rockets, the exhaust is released in the form of heat with pressure which helps the rocket to create an upward thrust.

Note: Rockets are the launch vehicle which is used to send spacecraft or satellites into space. There can be a single propellant too but here we used two propellants as mostly there are two. Mostly, multistage rockets are preferred as they can carry more load and it is more efficient. It has two or more stages of propellants and engines.
