Draw ∠AOB=60∘ using a protractor. Now, using a compass and ruler construct ∠XOY=∠AOB .

Answer
VerifiedVerified
444.6k+ views
like imagedislike image
Hint: Firstly, we have to draw a ray OB. With O as centre, we have to draw an angle 60∘ using the protractor. Therefore, we will get ∠AOB=60∘ . We have to draw an arc on OA and OB with any radius and O as centre. Let us denote C and D as the points that cut OA and OB respectively. Now, we have to draw a ray OY from O. Then, we have to take the measure of arc CD with O as centre using a compass and draw an arc of same length such that it cuts OY at P. Now, with the CD measure, cut an arc. We will denote this point as Q. We will get CD=PQ . Finally, we have to extend the ray O through Q to get a ray OX.

Complete step by step answer:
We have to draw ∠XOY=∠AOB . We can see that the vertex O is common. So, we have to draw ∠XOY along with ∠AOB .
Firstly, we have to draw a ray OB.
seo images

With O as centre, we have to draw an angle 60∘ using protractor. Therefore, we will get ∠AOB=60∘ .
seo images

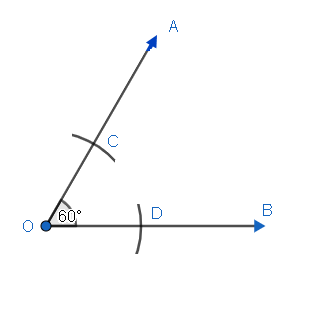

Now, we have to draw an arc on OA and OB with any radius and O as centre. Let us denote C and D as the points that cut OA and OB respectively.
seo images

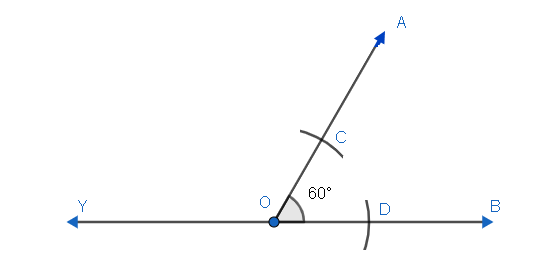

Now, we have to draw a ray OY from O.
seo images

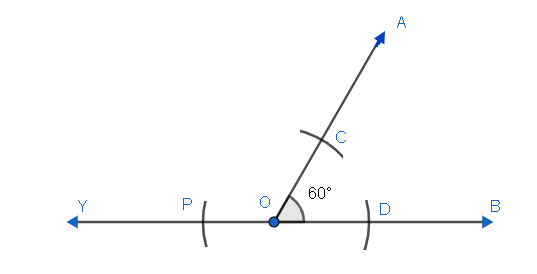

We have to take the measure of arc CD with O as centre using a compass and draw an arc of same length such that it cuts OY at P.
seo images

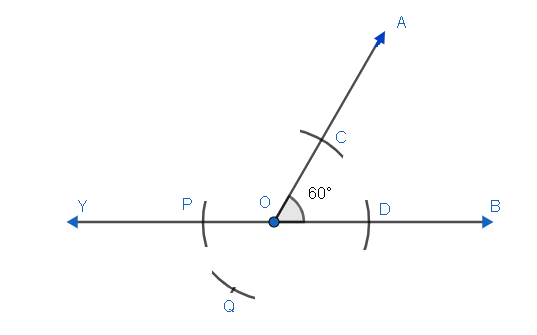

Now, with the CD measure, cut an arc. We will denote this point as Q. We will get CD=PQ .
seo images

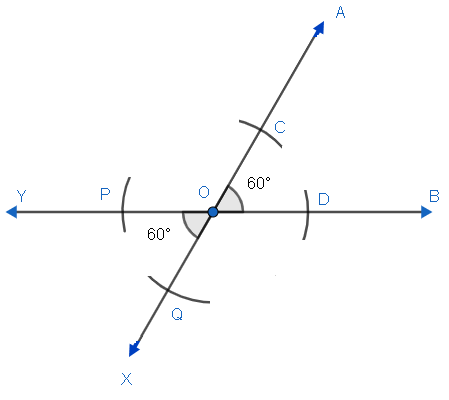

We have to extend the ray O through Q to get a ray OX.
seo images

Hence, we constructed ∠XOY=∠AOB .

Note: Students must know to use a protractor, measure and draw angles using it. We have to draw ∠XOY by extending ∠AOB . Students should always consider the arc length CD to draw PQ. All these constructions must be done with O as center.
