Question

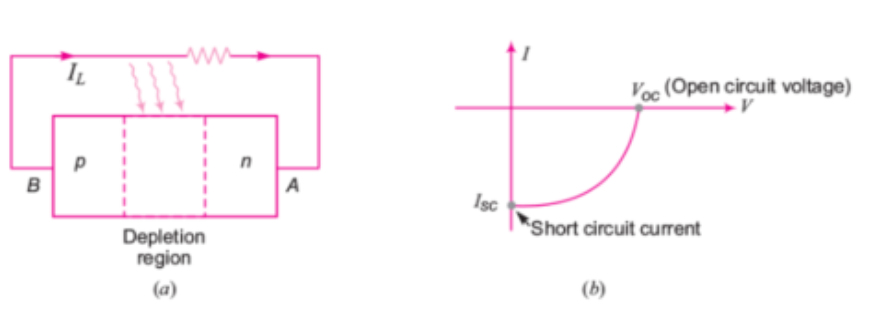

Describe the briefly using the necessary circuit diagram, the three basic processes which take place to generate the emf in a solar cell light falls on it. Draw the I-V characteristics of a solar cell. Write n two important criteria required for the selection of a material for solar cell fabrication. The retention of light, creating either electron-opening sets or excitons. The detachment of charge transporters of inverse sorts. Interestingly, a sun oriented warm gatherer supplies heat by engrossing daylight, with the end goal of either direct warming or backhanded electrical force age from heat.

Answer 1

Hint: It is the immediate transformation of light into power at the nuclear level. A few materials show a property. that makes them retain photons of light and delivery electrons. it is the age of an electric flow in a substance when presented to light. A portion of the benefits of slight film sun-oriented cells incorporates low material utilization, more limited energy restitution period, huge region modules, solid coordination, tunable material properties, low-temperature measures, and straight forward modules. Photovoltaic impact, measure in which two divergent materials in close contact produce an electrical voltage when struck by light or other brilliant energy.

Complete answer:

It depends on photovoltaic impact (age of voltage because of the barrage of light photons).
At the point when the sun-powered cell is enlightened with light photons of energy ($hv$) more noteworthy than the energy hole (${E_g}$) of the semiconductor , then, at that point, electron-opening sets are produced because of the tension of photons.
The three nuts and bolts measures included are age , partition, and assortment
a. age of electron-opening sets because of light (with $hv > {E_g}$ ) near the intersection
b. partition of electrons and openings because of the electric field of the exhaustion area. Electrons cleared to n-side and openings the p-side.
c. the electrons arriving at the n-side are gathered by the front contact and openings arriving at p-side are gathered by the back contact. In this manner, the p-side becomes positive and the n-side becomes negative leading to photograph voltage.

Significant models for the determination of material for sun based cell manufactures are :
I. band hole $ \sim 1.0to1.8eV$
ii. high optical retention $\left( { - {{10}^4}c{m^{ - 1}}} \right)$$ \approx 1.5eV$
iii. electrical conductivity,
iv. accessibility of the crude material , and
v. cost
Sun based radiation has the greatest force of photons of energy =$1.5eV$
Subsequently, semiconducting materials Si and Gas with band holes $ \approx 1.5eV$ are preferred materials for sunlight-based cells.

Note:
The fundamental stages in the activity of a sunlight-based cell are: the age of light-produced transporters; the assortment of the light-created conveys to produce a current; the age of a huge voltage across the sun oriented cell. A sun-oriented cell changes daylight straightforwardly into electrical energy., A sunlight-based cell or photovoltaic cell is a wide region electronic gadget that changes over sun-based energy into power by the photovoltaic impact. Photovoltaic impact, measure in which two divergent materials in close contact produce an electrical voltage when struck by light or other brilliant energy. Light striking gems like silicon or germanium, in which electrons are typically not allowed to move from one molecule to another inside the precious stone, give the energy expected to liberate a few electrons from their bound condition.
