Question

Construct a parallelogram ABCD in which \[BC = 5\]cm, \[\left| \!{\underline {\,
  {BCD} \,}} \right. = {120^ \circ }\] and \[CD = 4.8\]cm.

Answer 1

Hint: Here in this question belongs to the construction topic, given the length of two sides and one angle of parallelogram. As we know the parallelogram properties the opposite sides and opposite angles are always equal, we have to try to construct the parallelogram of given measurements by using a geometrical instrument, like centi-meter scale, compass with provision of fitting a pencil.

Complete step by step solution:
Consider the given question:
Given, the length of two sides and one angle of parallelogram ABCD i.e.,
\[BC = 5\]cm, \[\left| \!{\underline {\,
  {BCD} \,}} \right. = {120^ \circ }\] and \[CD = 4.8\]cm.
As we know the property of parallelogram: The parallel or opposite sides and opposite angles of a parallelogram are equal.
To construct the parallelogram ABCD follow the below steps:
Steps of Construction:

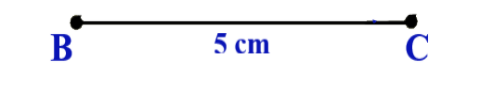

First, draw a baseline BC of length 5 cm (i.e., \[BC = 5\,cm\]) by using a centi-meter scale.

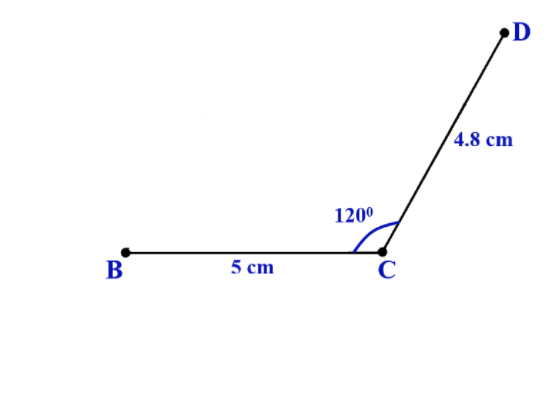

Draw a line CD of length 4.8 cm (i.e., \[CD = 4.8\,cm\]) from point C at an angle of \[{120^ \circ }\] (i.e., \[\left| \!{\underline {\,
  {BCD} \,}} \right. = {120^ \circ }\]) with the help of a protractor.

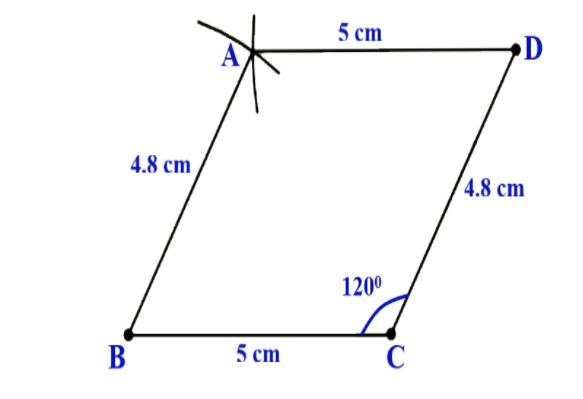

Now, draw the opposite sides by using a compass, take a length of radius 4.8 cm and make an arc by taking B as centre. Do the same by taking D as centre and length of 5 cm. Then join the arc intersection point to B and D and label it as A.

Hence, it’s a required construction of parallelogram ABCD.

Note: When doing construction handling the instruments carefully. Remember the parallelogram is a one of the types of quadrilateral, which has some basic properties like the opposite or parallel sides and the opposite angles are always equal otherwise the quadrilateral is not a parallelogram.
