Question

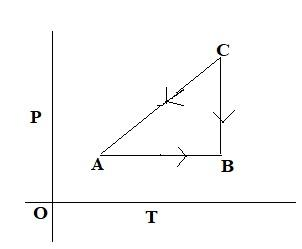

A cyclic process is shown in the P - T diagram: Which of the curves shows the same process on a V — T diagram?

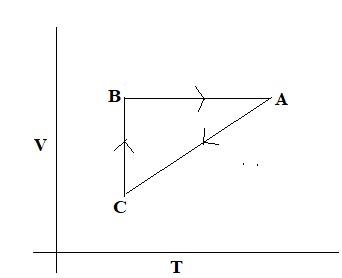

A.

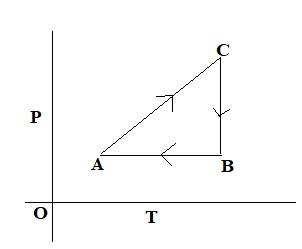

B.

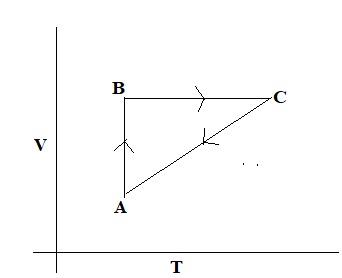

C.


D.

Answer 1

Hint: Cyclic process is the process in which the initial and final state are the same i.e., the initial and final internal energies are equal when a system undergoes a cyclic process. The changes of different cures are compared to the question and the curve corresponding is found.

Complete step by step answer:
The above question can be understood from the gas laws, Boyle’s law and Charles's Law.
Boyle’s law states the relationship between the pressure and the volume of the gas at a constant temperature. It states that the volume of a gas is inversely proportional to the pressure of a gas at a constant temperature, expressed as
\[{{P}}\propto {\dfrac{1}{V}}\]
Charle’s law states that the volume of a gas is directly proportional to the temperature at constant pressure in a closed system, expressed as’
\[{{V }}\propto {{ T}}\]
The thermodynamic process in which temperature remains constant is called an isothermal process and process in which volume remains constant is called an isochoric process.
In the given question, the process from \[{{A}}\, \to \,{{B}}\], \[{{P}}\propto \,{{T}}\] and volume is constant (isochoric process). And from \[{{B}}\, \to \,{{C}}\] temperature is constant, and pressure decreases, from \[{{C}}\, \to \,{{A}}\], pressure is constant and temperature decreases. Comparing this with the options, in the option C, from \[{{A}}\, \to \,{{B}}\] volume is constant and temperature increases, and from \[{{B}}\, \to \,{{C}}\] temperature is constant, and volume increases, pressure decreases, \[{{C}}\, \to \,{{A}}\] temperature decreases.

So, the correct answer is Option C.

Additional information:
The internal energy change in any cyclic process is zero, the best example of a cyclic process is the Carnot engine.

Note: The relationship between temperature and pressure at constant volume is given by Gay-Lussac law. It states that at a constant volume, the pressure of the gas is directly proportional to the temperature for a given gas. The relationship between amount of gas and volume is given by Avogadro’s law. The law also states volume of gases is proportional to the number of the molecule in the ideal gas.
